Fission track constrain on mineralization time and tectonic events in Ganzi-Litang gold belt, Tibet Plateau
-
摘要:
通过对甘孜-理塘金矿带内6个金矿区的11个磷灰石和锆石的裂变径迹数据分析，并对磷灰石数据进行热历史模拟，分析讨论了甘孜-理塘金矿带的成矿时代、构造热历史和构造事件。锆石裂变径迹结果显示金成矿时代主要为82~140Ma，属早白垩世成矿，并由南往北成矿时代具有变小的趋势，其中南段为124~140Ma，中段107Ma，北段约82Ma。磷灰石年龄亦具有同样趋势，矿石年龄为14~27Ma，围岩为88~95Ma。金矿带自燕山期以来，主要经历3个演化阶段，200~140Ma处于退火带中，为缓慢降温期，140~30Ma为相对平缓降温阶段，30Ma以来为快速降温期。从南到北降温速率依次加快，从锆石封闭温度250℃降至磷灰石封闭温度100℃的平均速率分别为1.46℃/Ma、1.67℃/Ma和2.21℃/Ma，对应的隆升速率为48.7m/Ma、55.7m/Ma和73.7m/Ma；从100℃降至地表温度的速率为3.15℃/Ma、5℃/Ma和6.07℃/Ma, 对应的隆升速率为104.9m/Ma、166.7m/Ma和202.4m/Ma。甘孜-理塘带的大规模陆内隆升主要在3Ma内，平均20℃/Ma, 667m/Ma，属于快速隆升，隆升量约2km。

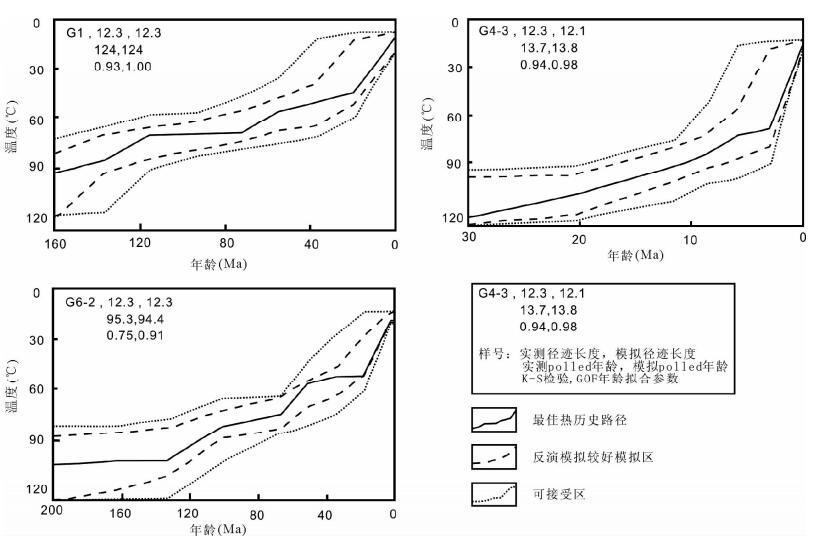

Abstract:This paper applies fission track thermochronology to probe mineralization age for six gold deposits and reveal the evolution of geological thermal history and tectonic events in the last 200Ma in Ganzi-Litang gold belt, Tibet Plateau. The results of zircon fission track analysis suggest the main mineralization ages are about 82~140Ma, decreasing from south section to north section. The mineralization ages are 124~140Ma, 107Ma and 82Ma in the south section, the middle section and the north section respectively. The apatite fission track analysis shows the similar trend from south section to north section, in which the ore ages are about 14~27Ma and the wallrock ages are 88~95Ma. Thermal history modeling results show that three cooling stages since Yanshannian. The first stage occurred before 200~140Ma and the third stage after 30Ma. The cooling rates were fast from south section to north section. From zircon closure temperature 250℃ to apatite closure temperature 100℃, the three ages had different cooling rates of 1.46℃/Ma, 1.67℃/Ma and 2.21℃/Ma, and uplifting rates were 48.7m/Ma, 55.7m/Ma and 73.7m/Ma respectively. From 100℃ to surface temperature, the three stages have average cooling rates of 3.15℃/Ma, 5℃/Ma and 6.07℃/Ma, and uplifting rates of 104.9m/Ma, 166.7m/Ma and 202.4m/Ma respectively. Thermal history modeling results reveal that uplifting rates were very fast in the last 3Ma. The cooling rate, uplifting rate and uplifting amount averaged 20℃/Ma, 667m/Ma, and 2km, indicating rapid uplifting.
-
-

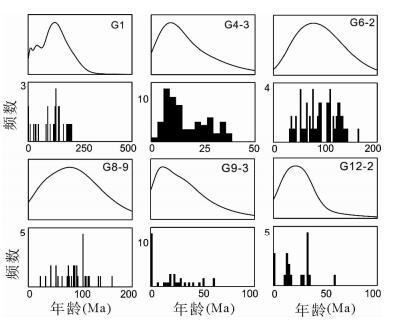

图 2
磷灰石样品裂变径迹单颗粒年龄直方图(下图)及其频率曲线(上图)
Figure 2.
Histograms of apatite single grain ages for each sample (lower) and their frequency curves (upper)
-
Berger GW and York D. 1981. Geothermometry from 40Ar/39Ar dating experiments. Geochimica et Cosmochimica Acta, 45(6): 795-811
Carlson WD, Donelick RA and Ketcham RA. 1999. Variability of apatite fission-track annealing kinetics I: Experimental results. American Mineralogist, 84(9): 1213-1223
Deng J, Wang QF, Yang SJ, Liu XF, Zhang QZ, Yang LQ and Yang YH. 2010. Genetic relationship between the Emeishan plume and the bauxite deposits in western Guangxi, China: Constraints from U-Pb and Lu-Hf isotopes of the detrital zircons in bauxite ores. Journal of Asian Earth Sciences, 37(5-6): 412-424
Deng J, Hou ZQ, Mo XX, Yang LQ, Wang QF and Wang CM. 2010a. Superimposed orogenesis and metallogenesis in Sanjiang Tethys. Mineral Deposits, 29(1): 37-42 (in Chinese with English abstract)
Deng J, Yang LQ, Ge LS, Yuan SS, Wang QF, Zhang J, Gong QJ and Wang CM. 2010b. Character and post-ore changes, modifications and preservation of Cenozoic alkali-rich porphyry gold metallogenic system in western Yunnan, China. Acta Petrologica Sinica, 26(6): 1633-1645 (in Chinese with English abstract)
Deng J, Wang CM and Li GJ. 2012. Style and process of the superimposed mineralization in the Sanjiang Tethys. Acta Petrologica Sinica, 28(5): 1349-1361 (in Chinese with English abstract)
Dodson MH and McClelland-Brown E. 1985. Isotopic and palaeo magnetic evidence for rates of cooling, uplift and erosion. In: Snelling NJ (ed.). The Chronology of the Geological Record. Geological Society of London, 10: 315-325
Harrison TM and Armstrong RL. 1978. Thermal models and cooling histories from fission-track, K-Ar, Rb-Sr, and U-Pb mineral dates, Northern Coast Pluton Complex, British Colombia. Abstract. Fourth International Conference on Geochronology Cosmochronology Isotope Geology
Harrison TM. 1981. Diffusion of 40Ar in hornblende. Contributions of Mineralogy and Petrology, 78(3): 324-331
Hou ZQ, Yang YQ, Qu XM et al. 2004. Tectonic evolution and mineralization systems of the Yidun Arc Orogen in Sanjiang Region, China. Acta Geologica Sinica, 78(1): 109-120 (in Chinese with English abstract)
Hu JM, Meng QR, Shi YR and Qu HJ. 2005. SHRIMP U-Pb dating of zircons from granitoid bodies in the Songpan-Ganzi Terrane and its implications. Acta Petrologica Sinica, 21(3): 867-880(in Chinese with English abstract)
Huan WJ, Yuan WM and Li N. 2011. Study on the mineral electron microprobe evidence of the formation conditions and fission track of gold deposits in Ganzi-Litang gold belt, western Sichuan Province. Geoscience, 25(2): 261-270(in Chinese with English abstract)
Ketcham RA, Donelick RA and Carlson WD. 1999. Variability of apatite fission-track annealing kinetics III: Extrapolation to geological time scales. American Mineralogist, 84: 1235-1255
Ketcham RA, Donelick RA and Donelick MB. 2000. AFTSolve: A program for multi-kinetic modeling of apatite fission-track data. Geological Materials Research, 2(1): 1-32
Ketcham RA. 2005. Forward and inverse modeling of low-temperature thermochronometry data. Reviews in Mineralogy and Geochemistry, 58(1): 275-314
Mo XX, Dong GC, Zhao ZD et al. 2005. Spatial and temporal distribution and characteristics of granitoids in the Gangdese, Tibet and implication for crustal growth and evolution. Geological Journal of China Universities, 11(3): 281-290 (in Chinese with English abstract)
Reiners PW, Spell TL, Nicolescu S and Zanetti KA. 2004. Zircon (U-Th)/He thermochronometry: He diffusion and comparisons with 40Ar/39Ar dating. Geochimica et Cosmochimica Acta, 68(8): 1857-1887
Wan TF. 2004. China Geotectonics Outline. Beijing: Geological Publishing House, 152-165 (in Chinese)
Wang QW, Wang KM, Kan ZZ, Fu XF et al. 2008. Granite and Associated Metallogenic Series in Western Sichuan. Beijing: Geological Publishing House, 7-53 (in Chinese)
Wei YF and Luo SL. 2003. Geological features of ophiolite in the middle Garzê-Litang plate junction. Acta Geologica Sichuan, 23(3): 134-139(in Chinese with English abstract)
Xiao J, Sun CM, Liu YS, Ma ZN, Yang HZ, Zhou QL and Sun Y. 2008. Wallrock alteration and relation with gold mineralization of Ajialongwa gold deposit in the central Ganzi-Litang Fault Zone, Sichuan. Geology and Prospecting, 44(6): 8-12(in Chinese with English abstract)
Yamada R, Tagami T, Nishimura S et al. 1995. Annealing kinetics of fission tracks in zircon: An experimental study. Chemical Geology, 122(1): 249-258
Yan JM, Lin GY and Liao HQ. 2008. On the geological features and genesis of the Cuo’a Au deposit in Dêgê, Sichuan. Acta Geologica Sichuan, 28(3): 208-210 (in Chinese with English abstract)
Yang LQ, Liu JT, Zhang C, Wang QF, Ge LS, Wang ZL, Zhang J and Gong QJ. 2010. Superimposed orogenesis and metallogenesis: An example from the orogenic gold deposits in Ailaoshan gold belt, Southwest China. Acta Petrologica Sinica, 26(6): 1723-1739 (in Chinese with English abstract)
Yang LQ, Deng J, Zhao K and Liu JT. 2011. Tectono-thermochronology and gold mineralization events of orogenic gold deposits in Ailaoshan orogenic belt, Southwest China: Geochronological constraints. Acta Petrologica Sinica, 27(9): 2519-2532 (in Chinese with English abstract)
Yin XK. 1993. Geochemical characteristics and tectonic implication of basalt in the northern district of Garze-Litang fracture zone. Acta Geologica Sichuan, 13(3): 201-207 (in Chinese with English abstract)
Yin XK. 1995. Main types and geological features of gold deposits in the northern section of Garze-Litang fracture zone. Acta Geologica Sichuan, 15(3): 195-203 (in Chinese with English abstract)
Yuan WM, Dong JQ and Bao ZK. 2004. Fission track evidences for tectonic activity in Altay Mountains, Xinjiang, northwestern China. Earth Science Frontiers, 11(4): 461-468(in Chinese with English abstract)
Yuan WM, Dong JQ, Wang SC and Yang ZQ. 2005. Apatite fission track analysis for revealing tectonic evolution of the South-Block in eastern Kunlun Mountains, northern Qinghai-Tibet Plateau. Nuclear Techniques, 28(9): 707-711(in Chinese with English abstract)
Yuan WM, Du YS, Yang LQ, Li SR and Dong JQ. 2007. Apatite fission track studies on the tectonics in Nanmulin area of Gangdese terrane, Tibet Plateau. Acta Petrologica Sinica, 23(11): 2911-2917(in Chinese with English abstract)
Yuan WM, Dong JQ, Bao ZK and Zhu BY. 2008. Apatite fission track evidences for Neocene tectono-thermal history in Nimu area, southern Gangdese terrane, Tibet Plateau. Atomic Energy Science and Technology, 42(6): 570-573(in Chinese with English abstract)
Yuan WM, Yang ZQ, Zhang ZC and Deng J. 2011. The uplifting and denudation of main Huangshan Mountains, Anhui Province, China. Science China (Earth Sciences), 54(8): 1168-1176
Zhang ND, Cao YW, Liao YA et al. 1998. Geology and Metallogeny in Ganzi-Litang Rift Zone. Beijing: Geological Publishing House, 60-87 (in Chinese)
Zhang J, Deng J, Li SH, Yan N, Yang LQ, Ma N, Wang QF and Gong QJ. 2010. Petrological characteristics of magmatites and their relationship with gold mineralization in the Chang’an gold deposit in southern Ailaoshan metallogenic belt. Acta Petrologica Sinica, 26(6): 1740-1750 (in Chinese with English abstract)
Zhang Y, Wang QF, Zhang J, Gong QJ and Cheng WB. 2012. Geological characteristics and genesis of Ajialongwa gold deposit in Ganzi-Litang suture zone, West Sichuan. Acta Petrologica Sinica, 28(2): 691-701 (in Chinese with English abstract)
Zhao ZD, Mo XX, Luo ZH et al. 2003. Subduction of India beneath Tibet: Magmatism evidence. Earth Science Frontiers, 10(3): 149-157 (in Chinese with English abstract)
Zhu HP. 2007. Geological characteristics and genesis of Ajialongwa gold deposit, Sichuan Province. Gold, 28(6): 18-20 (in Chinese with English abstract)
Zou GF. 1995. Advance of the research on the Garze-Litang plate junction. Acta Geologica Sichuan, 15(4): 257-263 (in Chinese with English abstract)
-
